What is a Plastic Crusher and How Does It Work?

A plastic crusher, which we also call a plastic granulator, is an essential machine in the recycling industry. Its main job is to take larger pieces of plastic and cut them into small, uniform flakes or granules. Understanding how this machine works helps you choose the right one for your business. We are Fude Machinery, and we build these machines. We want to help you understand the core mechanics and applications.

This guide will show you:

---

So, How Does a Plastic Crusher Actually Work?

A plastic crusher works by using high-speed rotating blades to continuously cut plastic material against stationary blades. It is a simple but powerful principle. The process is fast and efficient, designed for grinding down pre-shredded plastic chunks or less bulky items into small, consistent granules.

We design our machines for reliability and performance. The entire operation can be broken down into a few key steps. It’s like a high-speed, heavy-duty pair of scissors that never stops cutting. This continuous shearing action is what makes the plastic crusher machine so effective for size reduction in plastic recycling plants.

The Step-by-Step Working Principle

1. Feeding the Material: You start by putting the plastic waste into the feed hopper at the top of the machine. The shape of this hopper is designed to guide the material safely down into the cutting chamber without it flying back out.
2. The Cutting Action: Inside the cutting chamber, a central rotor spins at high speed. This rotor is fitted with multiple rotating blades. As the rotor spins, it forces the plastic material against stationary blades mounted on the chamber walls. The tight clearance between the spinning and static blades creates an intense shearing force that cuts the plastic into smaller pieces.
3. Sizing with a Screen: Below the cutting chamber is a heavy-duty mesh screen with holes of a specific size. The plastic pieces are repeatedly cut until they are small enough to fall through this screen. This screen is what determines the final size of your output granules. You can change the screen to get different sizes.

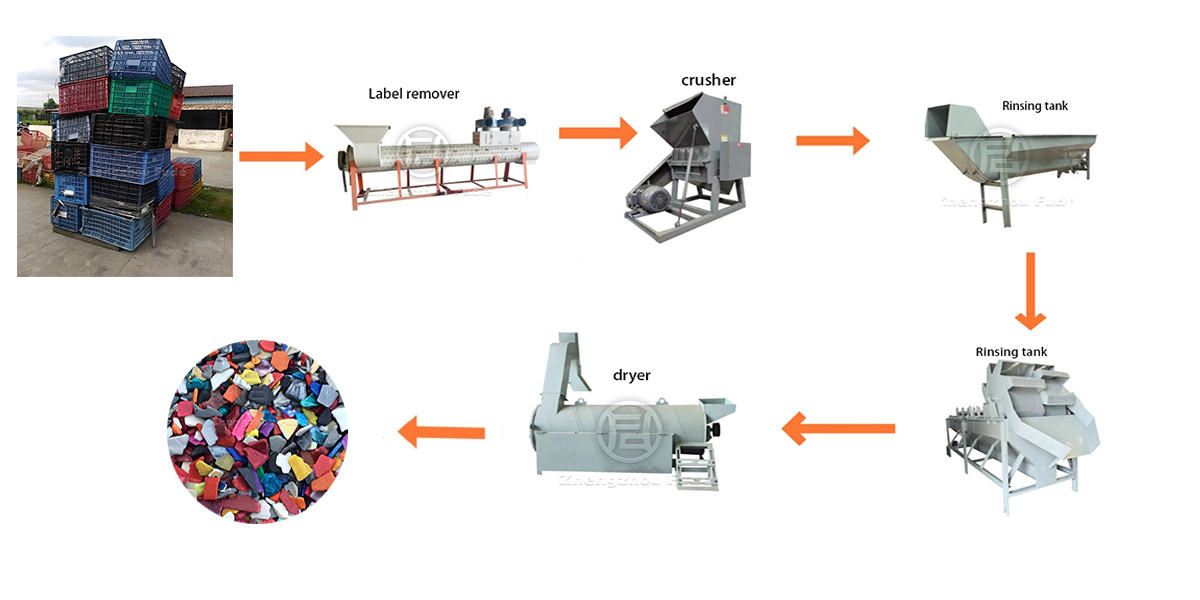

4. Discharging the Granules: Once the granules pass through the screen, they are collected in a container or, in a full production line, transported away by a blower system or screw conveyor for the next stage of processing, like washing or bagging.

---

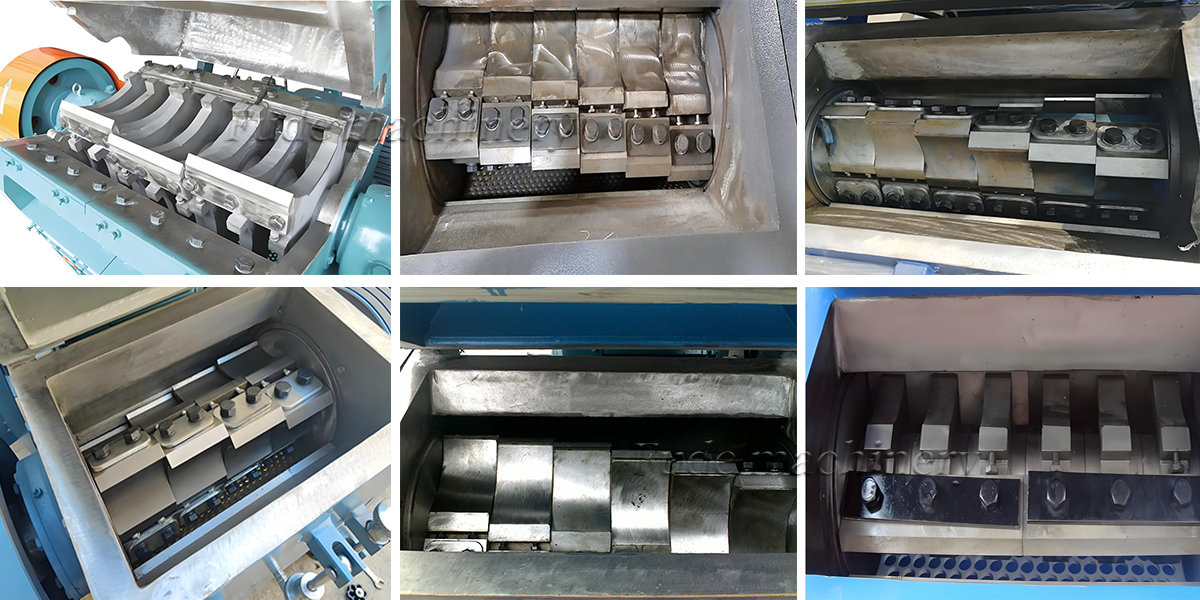

Why is the Blade Design So Critical?

The design of the blades is the single most important factor for a crusher’s performance. The shape of the blades determines how efficiently the machine can grab and cut a specific type of plastic. Using the wrong blade type will lead to low output, high energy consumption, and even damage to the machine. You wouldn’t use scissors to cut a log, and you wouldn’t use an axe to cut paper. It’s the same principle.

We manufacture our plastic granulators with different blade configurations because our B2B clients process a huge variety of materials. From hard, thick industrial blocks to soft, thin packaging films, each material behaves differently in the cutting chamber. Matching the blade design to your primary material is key to a profitable operation. It ensures a clean cut, consistent particle size, and longer blade life.

Claw Knife Crushers

Claw knives are the powerful all-rounders. They have a distributed blade design that looks like claws. This design spreads the cutting force, making it excellent for breaking down hard, thick, and tough materials. We recommend claw knife crushers for processing things like injection-molded parts, thick plastic pipes, machine head purgings, and solid plastic blocks.

Flat Knife Crushers

Flat knives, or straight knives, are set up like a reel mower. They provide a very precise and uniform shearing action. This makes them ideal for producing very consistent, high-quality granules from hard but less bulky materials. However, they are more susceptible to damage from foreign contaminants like metal, so the input material needs to be relatively clean.

V-Type Blade Crushers

V-type blades, also called V-shape cutters or simply blade crushers, are the best choice for thin and soft plastics. The “V” shape helps to actively pull the material towards the center of the rotor. This prevents light materials like PET bottles, plastic films, and woven bags from bouncing around inside the chamber. It ensures a fast, efficient cut for thin-walled plastics.

Blade Type	Best For	Main Advantage	What This Means for Your Business
Claw Knife	Hard, thick, tough materials (lumps, pipes)	High crushing power, disperses force.	You can process difficult materials with less strain on the motor.
Flat Knife	Hard, uniform shaped plastics	Produces highly uniform granules.	Best for when final product quality and consistency is your top priority.
V-Type Blade	Soft, thin-walled plastics (bottles, films)	Efficiently grabs and cuts light material.	Prevents jams and increases throughput when processing films and bottles.

---

What Are the Common Applications for a Plastic Crusher?

A plastic crusher is a versatile machine used across the entire plastics industry. Its primary role is in recycling, but it’s also used by plastic product manufacturers to process their own factory waste. Any business that needs to reduce the size of plastic scrap can benefit from a crusher.

At Fude Machinery, our clients use our crushers for a wide range of applications. The key is to match the crusher model and blade type to the specific material. A heavy duty plastic crusher with a claw knife is perfect for a professional recycling plant dealing with mixed hard plastics. A manufacturer processing their own PET bottle rejects would be better served by a V-type blade crusher. We help you make that choice.

• Hard & Thick Plastics: This includes rejected products from injection molding, thick-walled pipes (PVC, HDPE), plastic lumps from purging machines, and other solid blocks. A powerful claw-knife crusher is usually the best option here.
• Plastic Bottles and Containers: This is one of the biggest applications. A V-type blade crusher is highly effective for PET water bottles, HDPE milk jugs, and PP containers. It handles the thin walls efficiently.
• Plastic Films and Bags: Agricultural films, packaging films (LDPE), and woven PP bags are difficult to process because they are light and can wrap around rotors. A V-type blade crusher is specifically designed to prevent this and ensure a clean cut.
• General Factory Waste: Plastic manufacturers use crushers to reclaim their own scrap, like runners from injection molding, off-cuts from extrusion, and defective parts. This turns waste back into valuable raw material they can use again.

---

Key Features to Look for in a High-Quality Plastic Crusher?

When you are importing a plastic crusher, look beyond the basic price. The quality of construction and the design features will determine the machine’s lifespan, performance, and safety. As a direct manufacturer, we focus on engineering these key features into every machine we build.

A cheap, poorly made crusher will cause endless problems and cost you more in the long run through downtime and repairs. You should always check for a robust build, high-quality components, and features that make the machine easy and safe to operate. This is what separates a professional-grade plastic recycling crusher from a low-quality alternative.

• Heavy Steel Construction: The machine body should be made from thick, high-quality steel plates to withstand vibration and heavy use.
• Powerful Motor & Components: Look for a reliable motor from a good brand and high-quality bearings. This ensures the crusher has enough power to handle tough materials without overheating or failing.
• High-Quality Blades: The blades should be made from hardened tool steel (like D2 or SKD-11). This allows them to stay sharp longer, reducing your maintenance costs.
• Easy Screen Access: The design should allow you to change the screen quickly and easily. This lets you produce different granule sizes without a lot of downtime.
• Safety Interlocks: This is critical. The machine should have safety switches that automatically cut power if the hopper or screen chamber is opened during operation.

---

Crusher Safety and Maintenance: What You Need to Know

A plastic crusher is a powerful machine, so safety and maintenance are top priorities. A well-maintained machine is a safe and profitable machine. Ignoring these areas leads to accidents, breakdowns, and expensive repairs. We provide all our clients with clear guidelines.

We build our machines with safety systems, but daily operational discipline is just as important. Simple, regular checks can prevent most major problems. This ensures your investment continues to pay off for many years. Proper care protects your workers and your bottom line.

Essential Safety Practices

• Always wear protective gear: This includes safety glasses, gloves, and ear protection.
• Never reach into the hopper: Use a long tool to clear any jams, but only after the machine is completely powered off and locked out.
• Check safety interlocks daily: Make sure the automatic shut-off switches are working correctly.
• Keep the area clean: A clean workspace prevents slips, trips, and fire hazards from plastic dust.

Key Maintenance Tips

• Sharpen blades regularly: Dull blades crush and tear plastic instead of cutting it. This uses more energy and produces poor-quality granules.
• Check belt tension: The V-belts that connect the motor to the rotor should be properly tensioned to ensure efficient power transfer.
• Lubricate bearings: Follow the manufacturer’s schedule for greasing the bearings to prevent overheating and failure.
• Clean the screen: A clogged screen reduces output and can cause the motor to overwork.

---

Frequently Asked Questions (FAQ)

1. What is the difference between a plastic crusher and a shredder?
A shredder is for primary, coarse size reduction of large, bulky items (e.g., car bumpers, pallets). A crusher (or granulator) is for secondary, fine grinding of smaller pieces into uniform granules (e.g., turning 50mm chunks into 8mm flakes).

2. How do I choose the right size crusher for my business?
It depends on your material type and your required throughput (kg per hour). Contact us with your specific needs. We will help you calculate the right motor power and chamber size for your operation. It is better to have a slightly larger machine than one that is always running at 100% capacity.

3. Can your crusher handle plastic with some dirt or metal?
Our crushers are robust, but feeding them significant amounts of metal or stones will damage the blades. For dirty materials, we highly recommend our complete plastic washing and recycling lines, which clean the material before it reaches the final grinding stage.

4. How often do I need to replace the blades?
This depends on the material you process and how many hours you operate. For general plastics, blades can be re-sharpened several times before they need replacement. With proper use, a set of high-quality blades can last for many months.

---

Conclusion and Your Next Step

Understanding the plastic crusher working principle shows you that it’s a machine of elegant simplicity and power. Success depends on matching the machine—especially the blade type—to your specific application. A well-built crusher with a focus on quality components, ease of maintenance, and safety is a long-term asset for your business.

Instead of navigating the options alone, the best step is to consult with an experienced manufacturer. By working with a factory-direct partner like us, you get expert advice, full customization capabilities, and a competitive price.

Let’s find the perfect crusher for your plastic recycling needs.

Provide us with details about your plastic materials and your production goals. Our engineering team will create a customized proposal and a factory-direct quote to help you make the best investment.

Contact Fude Machinery today for your professional consultation!
